DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BF.jpg)
|
CFM-A238BF-280-680-22FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Datasheet |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 263.3 CFM (7.37m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.1dB(A) | 70.56 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9CRB0412P5S30140X56MM 12V,COUNTER ROTATING,LOW |
0 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 31.8 CFM (0.890m³/min) | 4.197 in H2O (1045.4 Pa) | Ball | Tubeaxial (Dual) | Speed Sensor (Tach) | 68.0dB(A) | 16.8 W | 22000 Front, 19700 Rear | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
4715SL-04W-B20-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 102.0 CFM (2.86m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | - | 45.0dB | 2 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-04W-B30-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 123.0 CFM (3.44m³/min) | 0.409 in H2O (102.0 Pa) | Ball | Tubeaxial | - | 49.5dB | 7 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B20-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | - | - | 2 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B30-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 123.0 CFM (3.44m³/min) | - | Ball | Tubeaxial | - | - | 7 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B50-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | - | 56.5dB | 17.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
4715SL-07W-B60-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | Tubeaxial | - | 59.5dB | 23.5 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
|
9WF0924H202FAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 8.4 W | 6500 RPM | 2 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|
FFB1324SHE-BFAN AXIAL 127X38MM 24VDC WIRE |
0 |
|
Datasheet |
FFB | Tray | Obsolete | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 20.16 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
9CRB0412P5J201FAN AXIAL DUAL 40X56MM 12VDC |
0 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 25.1 CFM (0.703m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 8.64 W | 17300 Front, 16000 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.222 lb (100.7 g) |
|
|
PMD1212PMB2-A.(2).GNFAN AXIAL 120X38MM 12VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart | 51.0dB(A) | 14.4 W | 3800 RPM | 2 Wire Leads | - | - | - | - |
|
|
612N/2MLFAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 14.0 CFM (0.392m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB(A) | 800 mW | - | 3 Wire Leads | - | 158°F (70°C) | - | 0.19 lb (86.18 g) |
|
|
9WF0924H2D01FAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 56.0dB(A) | 8.4 W | 6500 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|
|
9WF0924H2011FAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 56.0dB(A) | 8.4 W | 6500 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|
|
9WF0924S2011FAN AXIAL 92X32MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 32.00mm | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 58.0dB(A) | 12 W | 7300 RPM | 3 Wire Leads | Oil Resistant | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.408 lb (185.07 g) |
|

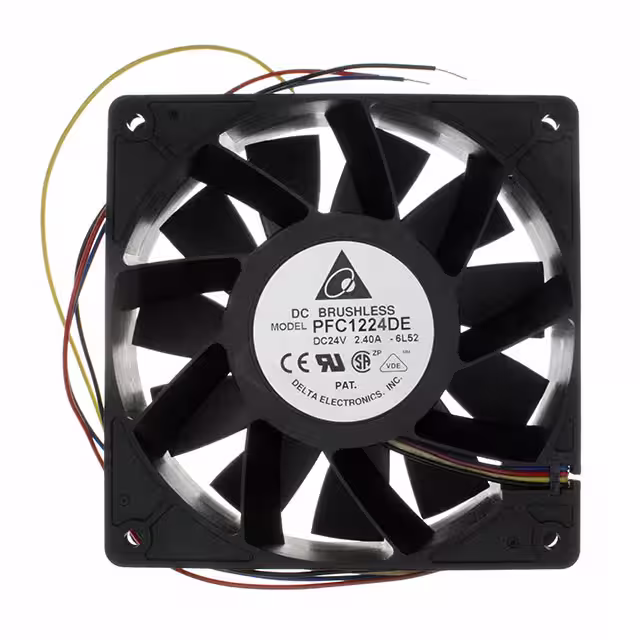

PFC1224DE-6L52FAN AXIAL 120X38MM 24VDC WIRE |
0 |
|
Datasheet |
PFC | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
19030638AFAN BLOWER 120.7X31MM 48V BD48B7 |
0 |
|
Datasheet |
Biscuit | Box | Active | 48VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 12 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|
OD127-12HBFAN AXIAL 127X38.5MM 12VDC WIRE |
0 |
|
Datasheet |
OD127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | - | 56.0dB | - | 3500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
PFB0912DHE-T500FAN AXIAL 92X38MM 12VDC WIRE |
0 |
|
Datasheet |
PFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 37.2 W | 8000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
