DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8038-24MBIP68FAN AXIAL 80X38MM 24VDC WIRE |
0 |
|
Datasheet |
OD8038 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 58.1 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB | 6 W | 4200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.461 lb (209.11 g) |
|
9G0624H40021FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 49.0dB(A) | 6 W | 9500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.199 lb (90.26 g) |
|
|
9G0624S4002160X25MM 24V,HIGH PERF.,LOW POWER |
0 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
1-NPL/603-1341FAN AXL 120X38MM 12VDC RECT CONN |
0 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
1-NPT/603-1335FAN AXL 120X38MM 12VDC RECT CONN |
0 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.571 in H2O (142.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 12.6 W | 3700 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.564 lb (255.83 g) |
|
|
1-NPT/603-1330FAN AXL 120X38MM 12VDC RECT CONN |
0 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 5.52 W | 2900 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
1-NPT/603-1327FAN AXL 120X38MM 12VDC RECT CONN |
0 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 3.84 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
1-NPL/603-1328FAN AXL 120X38MM 12VDC RECT CONN |
0 |
|
Datasheet |
AFB | Box | Discontinued | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB(A) | 3.84 W | 2600 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
|
9GL1212F102FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 3.36 W | 2280 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1212H102FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1224F102FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 3.84 W | 2280 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1224M102FAN AXIAL 119X38MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.64 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
|
9GL1212M102FAN AXIAL 119X38MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 2.52 W | 1950 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.816 lb (370.13 g) |
|
PMD4808PMB1-A.(2).GNFAN AXIAL 80X38MM 48VDC WIRE |
0 |
|
Datasheet |
PMD | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | Tubeaxial | - | 55.2dB(A) | 9.1 W | 5700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.386 lb (175.09 g) |
|
|
PMD1212PTB1-A (2).GN.IP55FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 150.0 CFM (4.20m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.0dB(A) | 12 W | 4500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

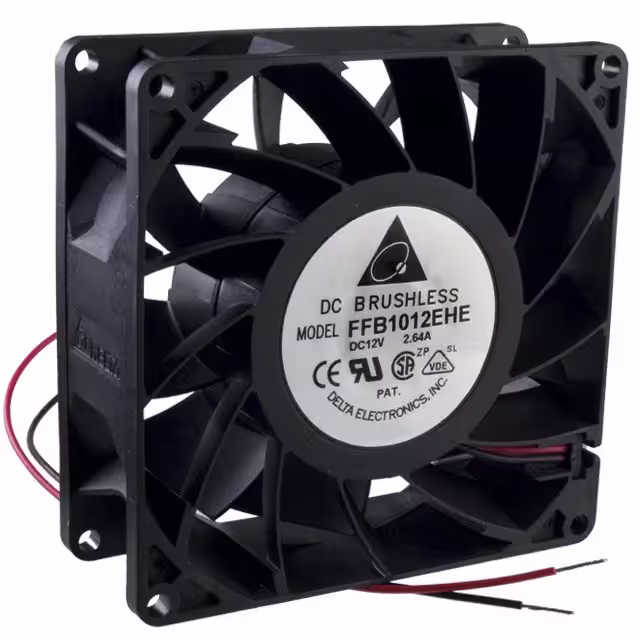

FFB1012EHEFAN AXIAL 100X38MM 12VDC WIRE |
0 |
|
Datasheet |
FFB | Tray | Obsolete | 12VDC | Square - 100mm L x 100mm H | 38.00mm | 143.1 CFM (4.01m³/min) | 0.835 in H2O (208.0 Pa) | Ball | Tubeaxial | - | 62.0dB(A) | 26.4 W | 5000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.772 lb (350.17 g) |
|

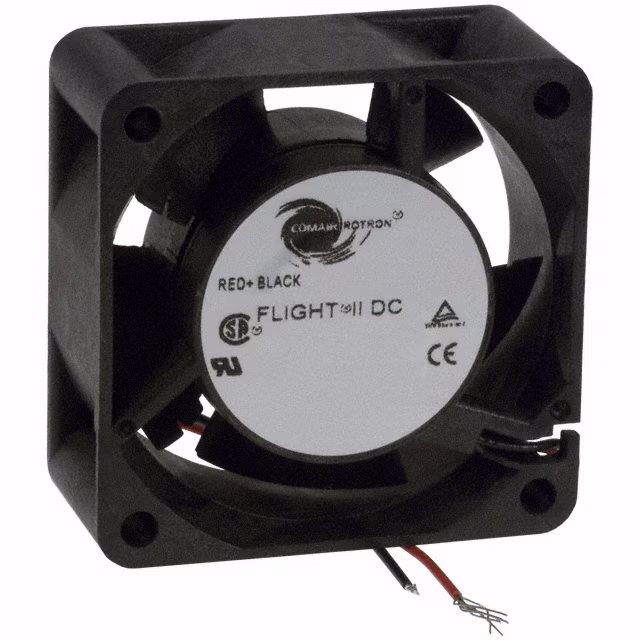

19031963AFAN AXIAL 60X25MM BALL 5V FS05B3 |
0 |
|
Datasheet |
Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 33.9dB(A) | 2 W | 5000 RPM | 2 Wire Leads | - | - | - | 0.243 lb (110.22 g) |
|
|
PMD1212PTB2-A (2).GN.IP55FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 133.0 CFM (3.72m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 51.0dB(A) | 8.6 W | 4000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1212PTB3-A (2).GN.IP55FAN AXIAL 120X25MM 12VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 48.0dB(A) | 6.5 W | 3600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
DC1203824J2B-3T0FAN 120X38MM 24VDC TACH |
0 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.0dB(A) | 36 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
