DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4028-24H3BDC FAN - 24V 40 X 40 X 28MM |
0 |
|
Datasheet |
OD4028 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 25.0 CFM (0.700m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 58.3dB(A) | 9.4 W | 14500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UKCA, UR | - |
|
|
OD4028-12H3BDC FAN - 12V 40 X 40 X 28MM |
0 |
|
Datasheet |
OD4028 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.0 CFM (0.700m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 58.3dB(A) | 9 W | 14500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UKCA, UR | - |
|

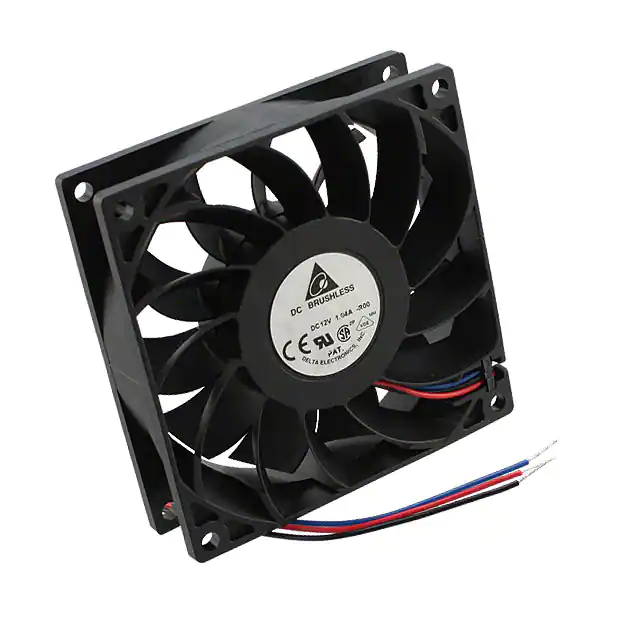

FFB0912SH-R00FAN AXIAL 92X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
FFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 90.0 CFM (2.52m³/min) | 0.396 in H2O (98.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 50.0dB(A) | 8.28 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.286 lb (129.73 g) |
|
|
SG40281B1-000U-Q99FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Datasheet |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control | 58.5dB(A) | 6.24 W | 19000 RPM | 4 Wire Leads | - | - | CUR, TUV, UL | 0.077 lb (34.93 g) |
|
|
PFB0612GHEFAN AXIAL 60X38MM 12VDC WIRE |
0 |
|
Datasheet |
PFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 10.2 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
|
9GA0612G7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 1.92 W | 5900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
PMD2407PKB1-A.(2).GNFAN AXIAL 70X20MM 24VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.5dB(A) | 5 W | 4600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD2407PKB2-A.(2).GNFAN AXIAL 70X20MM 24VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 40.0 CFM (1.12m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB(A) | 4.1 W | 4300 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD2407PKB3-A.(2).GNFAN AXIAL 70X20MM 24VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 37.0 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.5dB(A) | 3.4 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD2407PKB4-A.(2).GNFAN AXIAL 70X20MM 24VDC WIRE |
0 |
|
Datasheet |
PMD | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 20.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
9GA0312E300138X28MM 12VDC TACH |
0 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.0 CFM (0.340m³/min) | 1.004 in H2O (250.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 2.16 W | 14000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0312E3001138X28MM 12VDC TACH |
0 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.0 CFM (0.340m³/min) | 1.004 in H2O (250.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 2.16 W | 14000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0312H300138X28MM 12VDC TACH |
0 |
|
Datasheet |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 7.8 CFM (0.218m³/min) | 0.434 in H2O (108.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 1.08 W | 9200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
(8038B).jpg)
|
CFM-8038B-140-449-22FAN AXIAL 80X37.6MM 12VDC WIRE |
0 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 4.56 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038B-240-449-22FAN AXIAL 80X37.6MM 24VDC WIRE |
0 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 5.04 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038B-230-387-22FAN AXIAL 80X37.6MM 24VDC WIRE |
0 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038B-130-387-22FAN AXIAL 80X37.6MM 12VDC WIRE |
0 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 2.52 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803212L2B-2T2FAN 80X32MM 12VDC MOLEX 22-01-10 |
0 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 49.5 CFM (1.39m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 2.4 W | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MEC0252V1-000U-G9924VDC FAN 120X25MM ALARM |
0 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 5 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0252V3-000U-G9924VDC FAN 120X25MM ALARM |
0 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.0dB(A) | 2 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
