DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF40101VX-1000U-A99FAN AXIAL 12VDC 40X10MM |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AF40100VX-1000U-A99FAN AXIAL 5VDC 40X10MM |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0624EHDC9FAN AXIAL 60X25.4MM 24VDC WIRE |
0 |
|
Datasheet |
AFB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 5.76 W | 6800 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
MF20100V2-1000U-F995VDC FAN 20X10MM TACH |
0 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.0dB(A) | 0.4 W | 14000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20100V1-1000U-F995VDC FAN 20X10MM TACH |
0 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.0dB(A) | 0.53 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-8010-13-22FAN AXIAL 80X10.6MM 12VDC WIRE |
0 |
|
Datasheet |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 10.60mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.2dB(A) | 2.88 W | 3300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.094 lb (42.64 g) |
|
|
CBM-7530CF-230-404-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 |
|
Datasheet |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 9.9 CFM (0.277m³/min) | 0.310 in H2O (77.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.4dB(A) | 3.36 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-130-404-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 |
|
Datasheet |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 10.1 CFM (0.283m³/min) | 0.330 in H2O (82.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 40.4dB(A) | 2.4 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010B-135-215-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
0 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 7.5 CFM (0.210m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 0.48 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015B-275-287-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 8.4 CFM (0.235m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.7dB(A) | 1.2 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4015B-265-256-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 7.3 CFM (0.204m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.6dB(A) | 0.96 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8025-13-11FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
CFM-80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 47.0dB(A) | 5.16 W | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.195 lb (88.45 g) |
|
|
MF80151V3-1000U-S9912VDC FAN 80X15MM TACH/PWM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.5dB(A) | 0.86 W | 2800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V1-1000U-S9912VDC FAN 80X15MM TACH/PWM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.9dB(A) | 1.5 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-S9912VDC FAN 80X15MM TACH/PWM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.9dB(A) | 1.13 W | 3100 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
.F.GN.JPG)
|

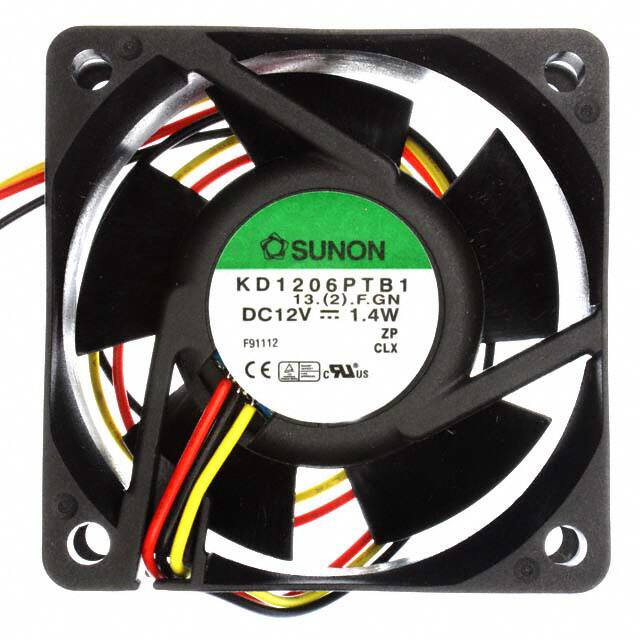

KD1206PTB1 (2).F.GNFAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 1.4 W | - | 3 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
PMD2406PTB1-A.(2).U.GNFAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
PMD | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.8 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
CFM-9225-23-10FAN AXIAL 92X25.4MM 24VDC WIRE |
0 |
|
Datasheet |
CFM-92 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 49.8dB(A) | 6.72 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.218 lb (98.88 g) |
|
|
CBM-7530BF-240-454-20DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 |
|
Datasheet |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 45.4dB(A) | 5.52 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025-13-10FAN AXIAL 60X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
CFM-60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | 4.8 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.161 lb (73.03 g) |
