DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1604KL-04W-B49-B00FAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
Datasheet |
04010KA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB | 880 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
GDA8025-12BBFAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Datasheet |
Gryphon | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.8dB(A) | 2 W | 3000 RPM | 3 Wire Leads | - | - | - | 0.167 lb (75.75 g) |
|
|
GDA8025-24BBFAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Datasheet |
Gryphon | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.8dB(A) | 3.6 W | 3000 RPM | 3 Wire Leads | - | - | - | 0.167 lb (75.75 g) |
|
2410SB-04W-B29-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B39-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B49-B00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.5dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B29-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B49-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B59-B00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.92 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B29-E00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B39-E00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B49-E00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.5dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-04W-B59-E00FAN AXIAL 60X25MM 12VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.8 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B29-E00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.5 CFM (0.406m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 17.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B39-E00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 16.9 CFM (0.473m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.5dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B49-E00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.5dB(A) | 1.44 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
2410SB-05W-B59-E00FAN AXIAL 60X25MM 24VDC WIRE |
0 |
|
Datasheet |
06025SA | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.253 in H2O (63.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.92 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
|
CFM-2010CF-0120-217-22DC AXIAL FAN, 20 MM SQUARE, 10 M |
0 |
|
Datasheet |
CFM-20CF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 10.30mm | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.7dB(A) | 750 mW | 12000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
19032628AFAN AXIAL 40X20MM CR0424HB-C50 |
0 |
|
Datasheet |
Flight LT 40 | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.0 CFM (0.280m³/min) | 0.256 in H2O (63.8 Pa) | Ball | Tubeaxial | - | 31.9dB(A) | 2.2 W | 7800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.075 lb (34.02 g) |
|

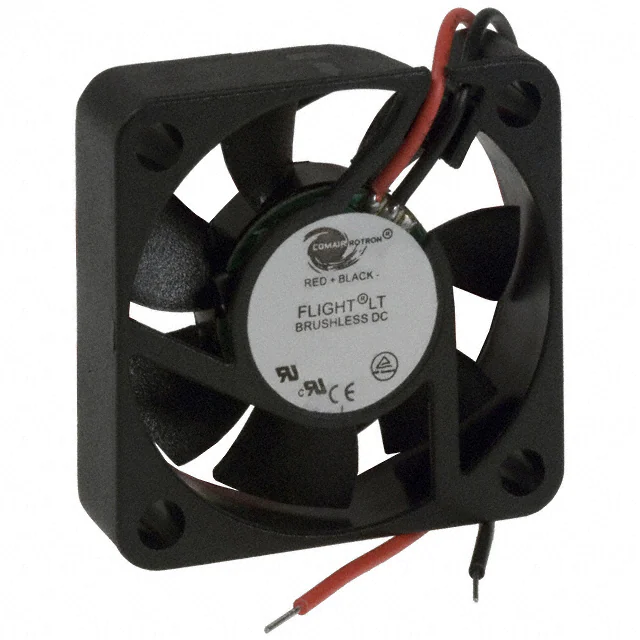

19032608AFAN AXIAL 40X10MM CR0412HB-G70 |
0 |
|
Datasheet |
Flight LT 40 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.8 CFM (0.190m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 1.2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.053 lb (24.04 g) |
