DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF80151S1-1000U-999FAN AXIAL 12VDC 80X15MM |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GB1205PHVX-8AY.GNFAN BLOWER 51.6X15MM 12VDC WIRE |
0 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 12VDC | Square/Rounded - 51.6mm L x 51.6mm H | 15.00mm | 4.7 CFM (0.132m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | Blower | - | 42.2dB(A) | 2 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
CFM-8025B-235-364FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 36.4dB(A) | 3.6 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010B-080-296-20FAN AXIAL 40X10.5MM 5VDC WIRE |
0 |
|
Datasheet |
CFM-40B | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.6dB(A) | 1.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
AFB0412LA-AFAN AXIAL 40X10MM 12VDC WIRE |
0 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 240 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
CFM-2510B-0100-218-22FAN AXIAL 25X10MM BALL 5VDC WIRE |
0 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.8dB(A) | 1.05 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-165-219-22DC BLOWER, 35 MM SQUARE, 10 MM, |
0 |
|
Datasheet |
CBM-35CF | Box | Active | 12VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 0.830 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.9dB(A) | 1.05 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-065-219-22DC BLOWER, 35 MM SQUARE, 10 MM, |
0 |
|
Datasheet |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 0.830 CFM (0.023m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 21.9dB(A) | 1 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020C-140-305-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 |
|
Datasheet |
CBM-50C | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 4.1 CFM (0.115m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 30.5dB(A) | 1.08 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-185-295-22DC BLOWER, 35 MM SQUARE, 10 MM, |
0 |
|
Datasheet |
CBM-35CF | Box | Active | 12VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 1.1 CFM (0.031m³/min) | 0.500 in H2O (124.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.8 W | 8500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020C-150-320-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 |
|
Datasheet |
CBM-50C | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.440 in H2O (109.6 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 32.0dB(A) | 2.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-3507CF-085-295-22DC BLOWER, 35 MM SQUARE, 10 MM, |
0 |
|
Datasheet |
CBM-35CF | Box | Active | 5VDC | Square/Rounded - 35mm L x 35mm H | 7.00mm | 1.1 CFM (0.031m³/min) | 0.500 in H2O (124.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.9 W | 8500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

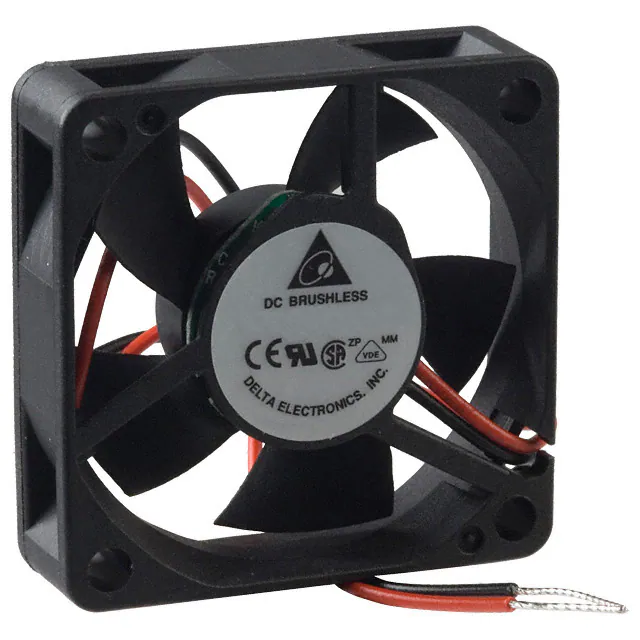

AFB03512HAFAN AXIAL 35X10MM 12VDC WIRE |
0 |
|
Datasheet |
AFB | - | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | 1.08 W | - | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
3610RL-05W-B59-E50FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Datasheet |
3610RL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 39.5dB(A) | 6 W | 3150 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, UL, VDE | 0.187 lb (84.82 g) |
|
|
MF70151V3-1000U-G9912VDC FAN 70X15MM ALARM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.1 CFM (0.535m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.7dB(A) | 0.36 W | 2500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V1-1000U-G9912VDC FAN 70X15MM ALARM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 27.3 CFM (0.764m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 0.89 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF70151V2-1000U-G9912VDC FAN 70X15MM ALARM |
0 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 0.62 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
OD8020-12LLSFAN AXIAL 80X20MM 12VDC WIRE |
0 |
|
Datasheet |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
MF50152V1-1000U-F9924VDC FAN 50X15MM TACH |
0 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.0dB(A) | 1.01 W | 6100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF50152VX-1000U-F9924VDC FAN 50X15MM TACH |
0 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 18.6 CFM (0.521m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.1dB(A) | 1.32 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
