DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225VA-12N-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Datasheet |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12N-AA-00FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Datasheet |
09225VA | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.0 CFM (2.16m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
FFB0412HN-F00FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 10.6 CFM (0.297m³/min) | 0.248 in H2O (61.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.1dB(A) | 840 mW | 6500 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
E1225E24B1-FSR-TTLFAN AXIAL 120X25MM 24VDC WIRE |
4 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.436 lb (197.77 g) |
|
06038RE-24S-GT-00FAN AXIAL 60X38MM 24VDC WIRE |
0 |
|
Datasheet |
06038RE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 59.0 CFM (1.65m³/min) | 1.530 in H2O (381.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.0dB(A) | 15.6 W | 11000 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | cULus, VDE | - |
|
OD9225-12HBIP55FAN AXIAL 92.5X25MM 12VDC WIRE |
0 |
|
Datasheet |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | - | cURus, TUV | - |
|
|
11938KA-48L-EA-00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 |
|
Datasheet |
11938KA | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 42.5dB | 7.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
9S0812L4011FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 16.0dB(A) | 600 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
OD1225-12HTBFAN AXIAL 120X25MM 12VDC TERM |
5 |
|
Datasheet |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.341 lb (154.67 g) |
|
9BD24FC6-1FAN BLOWER 76X20MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.128 lb (58.06 g) |
|
9RA0824S4001FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.4 CFM (1.08m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9G0624G1011FAN AXIAL 60X38MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 65.0 CFM (1.82m³/min) | 1.747 in H2O (435.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.0dB(A) | 20.4 W | 11800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0848K401FAN AXIAL 80X25MM 48VDC WIRE |
0 |
|
Datasheet |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 55.1 CFM (1.54m³/min) | 0.355 in H2O (88.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 4.8 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

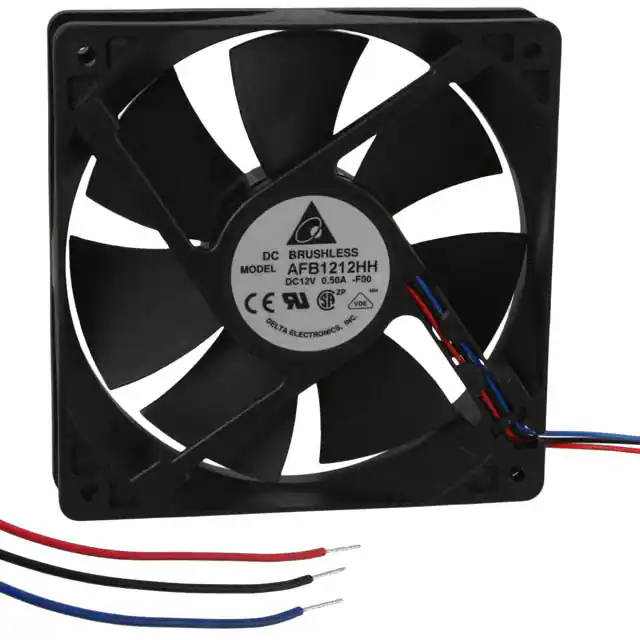

AFB1212HH-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 3.96 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
9GAX0412P3S0031FAN AXIAL 40X28MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.8 CFM (0.890m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 15.6 W | 25000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
09225VE-24Q-CT-00FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Datasheet |
09225VE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 96.4 CFM (2.70m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 9.12 W | 5600 RPM | 4 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
08025DA-12N-EU-02FAN AXIAL 80X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
08025DA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.0dB | 2.64 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
9WF0424F6D01FAN AXIAL 40X20MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.8 CFM (0.218m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 1.82 W | 11000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.111 lb (50.35 g) |
|
|
9RA0912G40011FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Datasheet |
San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 4200 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0924S4001FAN AXIAL 92X25MM 24VDC WIRE |
0 |
|
Datasheet |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.2 CFM (1.63m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
