DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2004KL-04W-B59-B00FAN AXIAL 50X10MM 12VDC WIRE |
0 |
|
Datasheet |
2004KL | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 10.2 CFM (0.286m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
2106KL-04W-B59-L00FAN AXIAL 52X15MM 12VDC WIRE |
0 |
|
Datasheet |
2106KL | Bulk | Obsolete | 12VDC | Square - 52mm L x 52mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB | 1.56 W | 4900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
2408NL-04W-B59-L00FAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
Datasheet |
2408NL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.162 in H2O (40.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.5dB | 1.32 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
2408NL-05W-B59-L00FAN AXIAL 60X20MM 24VDC WIRE |
0 |
|
Datasheet |
2408NL | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.162 in H2O (40.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.5dB | 1.32 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
2408NL-04W-B59-P00FAN AXIAL 60X20MM 12VDC WIRE |
0 |
|
Datasheet |
2408NL | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 17.6 CFM (0.493m³/min) | 0.162 in H2O (40.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.5dB | 1.32 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
3108NL-04W-B59-L00FAN AXIAL 80X20MM 12VDC WIRE |
0 |
|
Datasheet |
3108NL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB | 3.36 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
3108NL-05W-B59-P00FAN AXIAL 80X20MM 24VDC WIRE |
0 |
|
Datasheet |
3108NL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 44.0 CFM (1.23m³/min) | 0.201 in H2O (50.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB | 3.6 W | 3750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
3110KL-04W-B69-L00FAN AXIAL 80X25MM 12VDC WIRE |
0 |
|
Datasheet |
3110KL | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.12 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-05W-B69-L00FAN AXIAL 80X25MM 24VDC WIRE |
0 |
|
Datasheet |
3110KL | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3112KL-04W-B69-E00FAN AXIAL 80X32MM 12VDC WIRE |
0 |
|
Datasheet |
3112KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 58.6 CFM (1.64m³/min) | 0.317 in H2O (78.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 5.4 W | 4350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

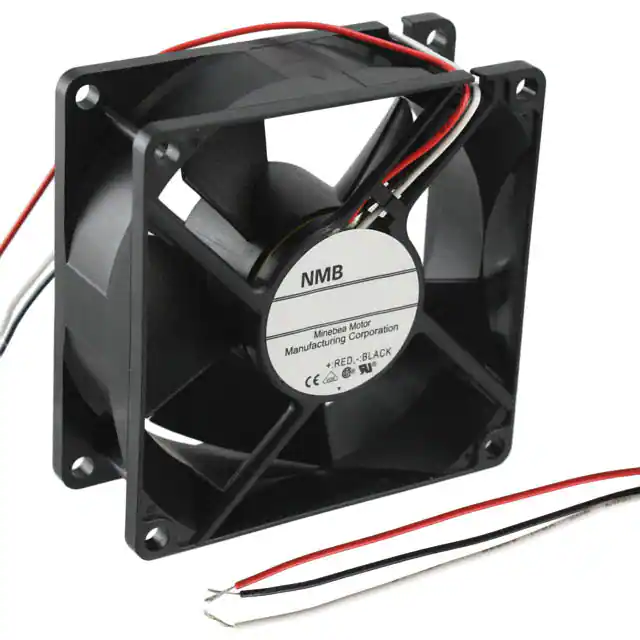

3112KL-05W-B69-E00FAN AXIAL 80X32MM 24VDC WIRE |
0 |
|
Datasheet |
3112KL | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 58.6 CFM (1.64m³/min) | 0.317 in H2O (78.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.0dB | 5.04 W | 4350 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B49-G00FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Datasheet |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.5dB | 2.64 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B10-D00FAN AXIAL 92X25MM 12VDC WIRE |
0 |
|
Datasheet |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB | 880 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3615KL-04W-B59-P00FAN AXIAL 92X38.4MM 12VDC WIRE |
0 |
|
Datasheet |
3615KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 38.40mm | 76.2 CFM (2.13m³/min) | 0.358 in H2O (89.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 5.52 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
3615KL-05W-B59-P00FAN AXIAL 92X38.4MM 24VDC WIRE |
0 |
|
Datasheet |
3615KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.40mm | 76.2 CFM (2.13m³/min) | 0.358 in H2O (89.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 5.76 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|
4712KL-05W-B49-P00FAN AXIAL 119X32MM 24VDC WIRE |
0 |
|
Datasheet |
4712KL | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 112.0 CFM (3.14m³/min) | 0.329 in H2O (82.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB | 8.16 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.529 lb (239.95 g) |
|
4715SL-04W-B69-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 |
|
Datasheet |
4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 59.5dB | 23 W | 4700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.882 lb (400.07 g) |
|
5910PL-05W-B59-L50FAN AXIAL 172X25.4MM 24VDC WIRE |
0 |
|
Datasheet |
5910PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 62.5dB | 24 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
5920PL-07W-B79-D50FAN AXIAL 172X50.8MM 48VDC WIRE |
0 |
|
Datasheet |
5920PL | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 63.2dB | 24.5 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
BM5115-04W-B59-L00FAN BLOWER 51X15MM 12VDC WIRE |
0 |
|
Datasheet |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | Blower | Locked Rotor Sensor | 42.0dB | 2.16 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
