DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS1751M12B1+6-FHRFAN AXIAL 171X51.5MM 12VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751H12B1+6-FHRFAN AXIAL 171X51.5MM 12VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 12VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | - | 5500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751L24B1+6-FHRFAN AXIAL 171X51.5MM 24VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751M24B1+6-FHRFAN AXIAL 171X51.5MM 24VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 24VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751L48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 184.4 CFM (5.16m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751M48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 352.1 CFM (9.86m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | - | 4500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
MS1751H48B1+6-FHRFAN AXIAL 171X51.5MM 48VDC WIRE |
0 |
|
Datasheet |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 51.50mm | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | - | 5500 RPM | 4 Wire Leads | - | - | - | 1.5 lbs (670.0 g) |
|
|
15050VA-24R-EU-00FAN AXIAL 172.7X50.8MM 24VDC |
0 |
|
Datasheet |
15050VA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB | 43.2 W | 4600 RPM | 4 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
15050VA-48R-EU-00FAN AXIAL 172.7X50.8MM 48VDC |
0 |
|
Datasheet |
15050VA | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 68.0dB | 43.2 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

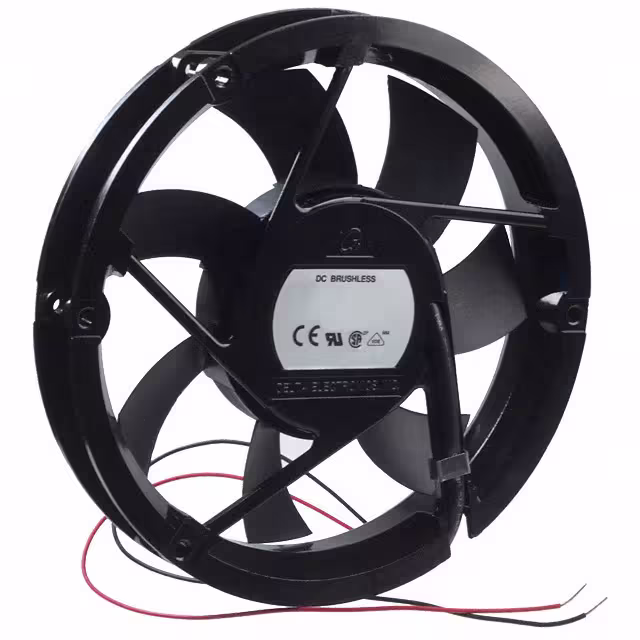

AFB1712H-AFAN AXIAL 172X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Round - 172mm Dia | 25.40mm | 202.5 CFM (5.67m³/min) | 0.467 in H2O (116.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 11.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
AFB1712HH-AFAN AXIAL 172X25.4MM 12VDC WIRE |
0 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Round - 172mm Dia | 25.40mm | 214.9 CFM (6.02m³/min) | 0.524 in H2O (130.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.5dB(A) | 14.16 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
8452/2HPDC TUBEAXIAL FAN |
0 |
|
Datasheet |
8450 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 44.2 CFM (1.24m³/min) | - | Ball | Tubeaxial | - | 38.0dB(A) | 2.5 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
17001182AFAN AXIAL 24VDC JQD24B3E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 24 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001183AFAN AXIAL 48VDC JQD48B3E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.3dB(A) | 22.1 W | 3400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001184AFAN AXIAL 24VDC JQD24K4E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 285.0 CFM (7.98m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.9dB(A) | 43.2 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001185AFAN AXIAL 48VDC JQD48K3E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 285.0 CFM (7.98m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.9dB(A) | 43.2 W | 4200 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001187AFAN AXIAL 48VDC JQD48Z3E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 305.0 CFM (8.54m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 32.2 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001189AFAN AXIAL 48VDC JQD48U3E2X-E3 |
0 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 332.0 CFM (9.30m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 40.8 W | 4830 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
9LG0948H4D00192X25MM 48V, HIGH PERF LONG LIFE |
0 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG0948H400192X25MM 48V, HIGH PERF LONG LIFE |
0 |
|
Datasheet |
San Ace 92L | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.20mm | 49.4 CFM (1.38m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.92 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
