DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDB02H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB02H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB03H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB04H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB04H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.179" (4.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB04H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SDB06H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB06H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.179" (4.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB07H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB08H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.179" (4.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB08H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB08H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SDB08H0BSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.148" (3.75mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SDB09H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SDB12H0SBDSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
Datasheet |
SDB | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
BDB02SWITCH SLIDE DIP SPST 0.025A 25V |
0 |
|
Datasheet |
BDB | Tube | Obsolete | SPST | 2 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BDB03SWITCH SLIDE DIP SPST 0.025A 25V |
0 |
|
Datasheet |
BDB | Tube | Obsolete | SPST | 3 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BDB04SWITCH SLIDE DIP SPST 0.025A 25V |
0 |
|
Datasheet |
BDB | Tube | Obsolete | SPST | 4 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
BDB05SWITCH SLIDE DIP SPST 0.025A 25V |
0 |
|
Datasheet |
BDB | Tube | Obsolete | SPST | 5 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

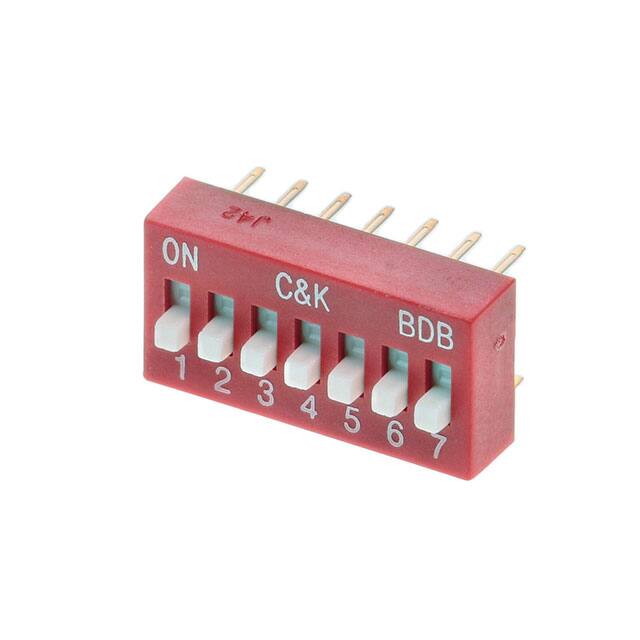

BDB07SWITCH SLIDE DIP SPST 0.025A 25V |
0 |
|
Datasheet |
BDB | Tube | Obsolete | SPST | 7 | 25mA | 25VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.274" (6.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
